Self Regulating Heating Cable

Self Regulating Heating Cable

Consisting of two parallel bus wires, Self-regulating heating cable is embedded in a semi-conductive self-regulating matrix. The heat output of the irradiated self-regulating core increases when the temperature falls, and decreases when temperature rises. These heating cables (also referred to as self-limiting heating cables) have now become the most common form of electric heat tracing cable used in the world. This Self-regulating heating cable is designed to use in hazardous areas and intended for freeze protection and low process Temperature maintenance. Self-regulating heating cables can be used for versatile applications including freeze protection of vessels and pipe works ; process temperature maintenance; heating of roads, ramps, walkways, etc; roof and gutter heating and under floor heating. These heating cables will not overheat or burnout even overlapped so it makes any application safe-using.

Specificatios

Output (w/m)

10,13,16,24,30

 Temperature Range

-20°c~65°c (Momentary Max Allowable Temperature  85°c)

Voltage (VAC)

220~240

Packing Unit

 300m/400m (Bobbin), 100m (Roll)

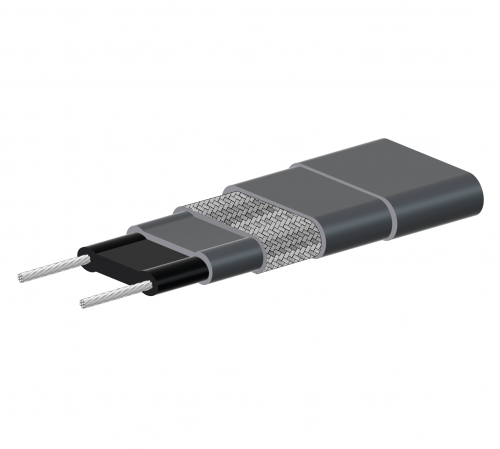

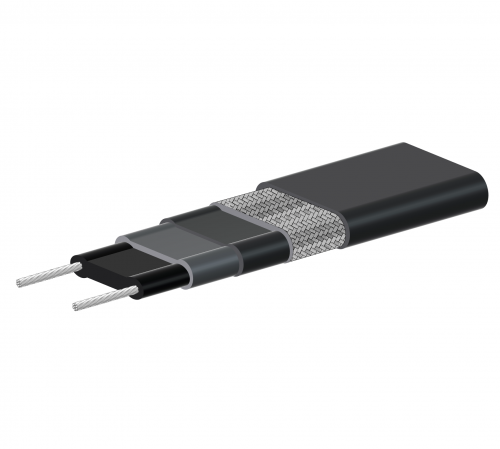

Cable Construction

No. Construction Material

1

Bus Wire

Nickel / Tinned copper

2

Heating Element

 Semi-Electronic compounding

3

Insulation

Thermoplastic

4

Earth / Reinforcement

Tin plating braided

5

External Protection

 Thermoplastic

Temperature-Output Graph
