Tubular Heating Element

Tubular Heating Element

Arisan Tubular elements are used to heat up liquids, air, gasses in lower temperatures. They can easily be brazed or welded to any metal surface. These qualities make it an ideal heat source for many applications. For heating air and other gases finned tubular heaters are highly recommended as the other type of tubular heaters. They can be bent to a number of shapes and are available with fitting and mounting brackets as required. These heaters can be formed into virtually any shape and can be brazed or welded to any metal surface.

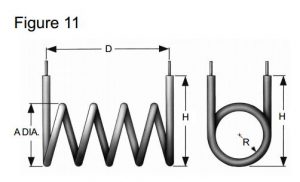

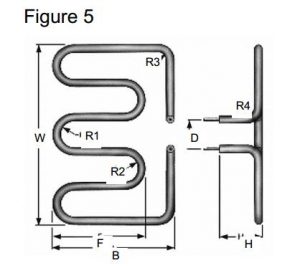

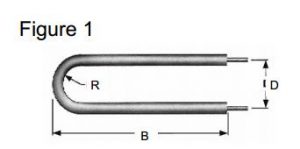

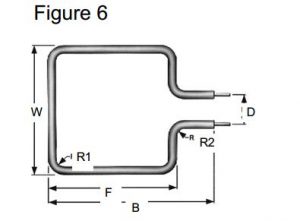

The forms can be ordered:

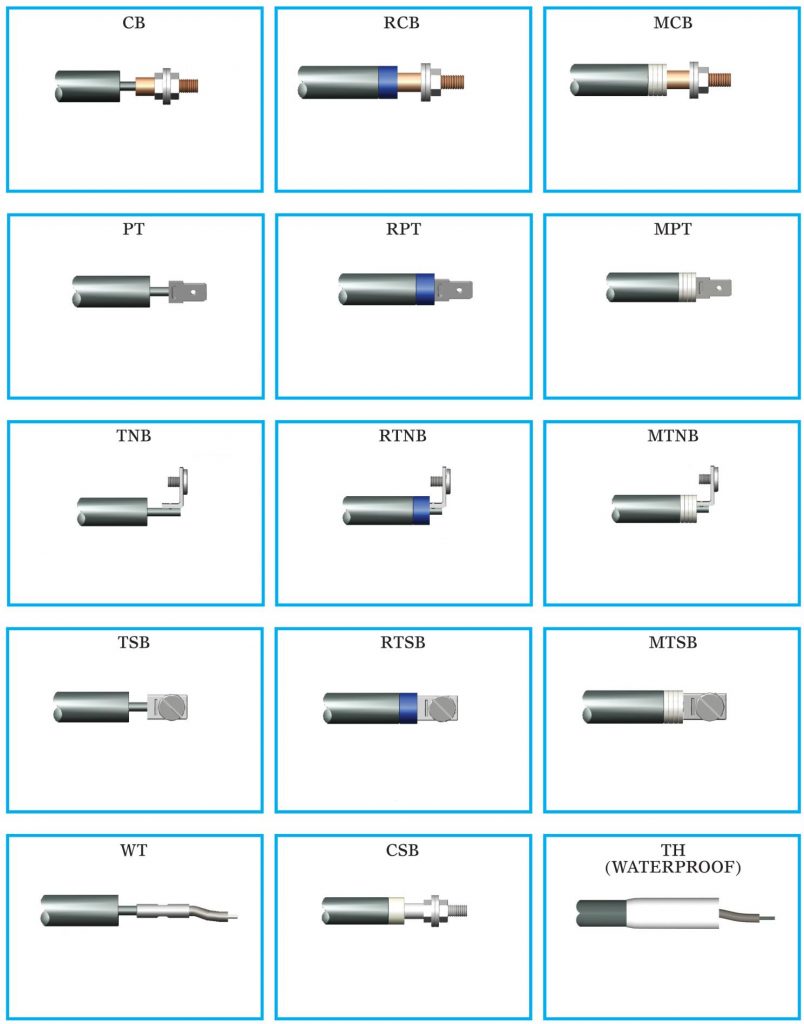

Various types of terminal:

Features:

  • Easy to install
  • Heat can be located exactly where required
  • Can be formed to practically any shape
  • Compact
  • Easy to control to provide heat only when required
  • Low maintenance and long life
  • Excellent internal electrical insulation and heat conduction
  • Electrically isolated sheath

How to specify a tubular heater:

  • Intended voltage
  • Intended wattage
  • Sheath diameter
  • sheath length
  • sheath material (Stainless steel 304/316/321)
  • Length of cold ends
  • Terminal type
  • Forming dimensions (send sketch)
