Bobbin Heater

Highlights of Ceramic Bobbin Heater

• Bobbin heaters are extensively used for heating air or liquids.

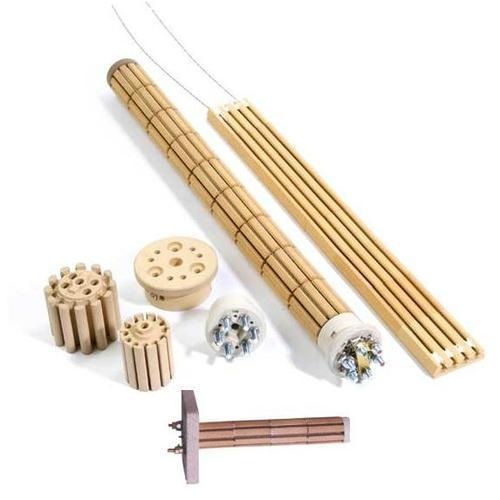

• Ceramic bobbin heater consists of several refractory ceramic blocks and 80/20 nickel chrome resistance wire, which are connected at terminal block at one end.
• These ceramic blocks can be assembled together to the required length.
• The special construction allows easy installation and handling.

Feature

• High temperature resistance and mechanical strength
• Various diameter options
• Custom length according to the heating load
• Fast heating and larger temperature ramp rate

Application

• Hot water tank
• Electric boiler
• Hot oil tank
• Air heating
• Hot air dryer

Technical Data

• Operating temperature: 100C ~700 C
• Watt density: 50W/in2 ~ 120W /in2
• Standard voltage: 110, 120, 220, 230, 240, 380 V or custom
• Wattage tolerance: -2% ~ +2%
• Resistance: Ni-Cr 80/20
• Insulation material: Ceramic / Steatite
